Advanced Tube Furnaces for Research & Production
Our tube furnaces are engineered for precision thermal processing in controlled environments. From CVD and annealing to materials synthesis and crystal growth, our tube furnaces deliver exceptional temperature uniformity and process control.
Available in horizontal, vertical, rotary, and multi-zone configurations, our tube furnaces accommodate tube diameters from 30mm to 200mm and temperatures up to 1700°C. Optional vacuum and atmosphere packages extend their capabilities for demanding research applications.
- Temperature range: 1200°C - 1700°C
- Tube diameter: 30mm - 200mm
- Heating zones: Single, dual, or triple zone
- Atmosphere: Air, inert gas, or vacuum
- Rotation and tilt options available
Tube Furnace Configurations
Choose the configuration that best suits your application and workflow.

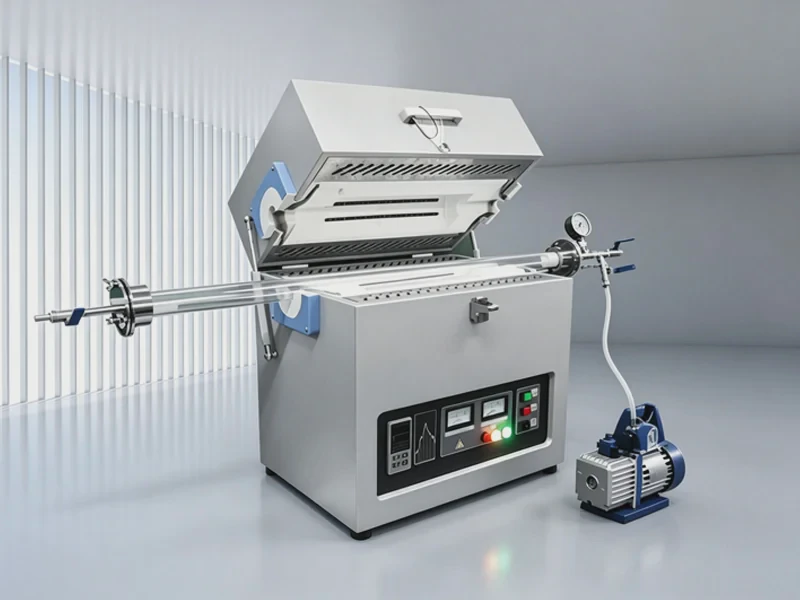

Horizontal tube furnace
Brother Furnace horizontal tube furnaces are used in universities, scientific research institutes, industrial and mining enterprises and other fields, and are widely used in high-temperature sintered metal material processing experiments, quality inspection and small batch production.
View Details

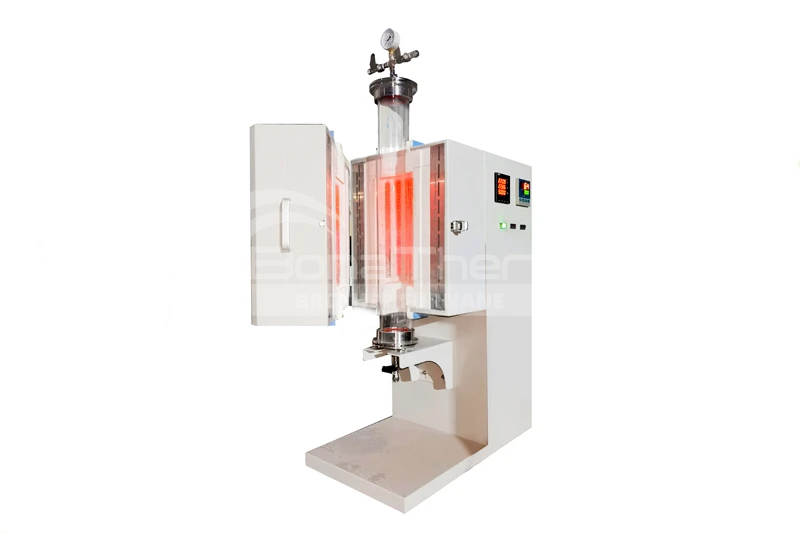

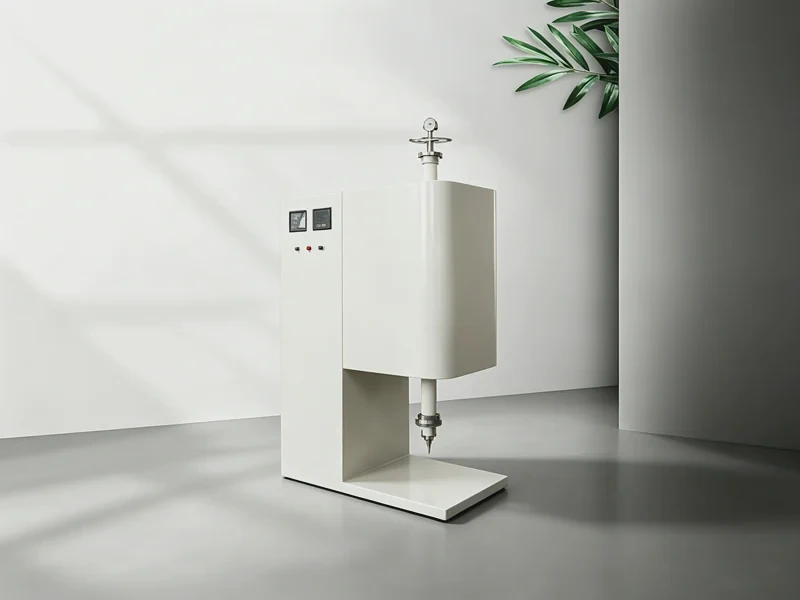

Vertical tube furnace
The vertical tube furnace is suitable for material processing processes under various temperature ranges in vacuum or protective atmosphere. Whether it is pre-sintering, sintering, coating or high-temperature pyrolysis and low-temperature deposition (CVD), it can provide an ideal processing environment.
View Details

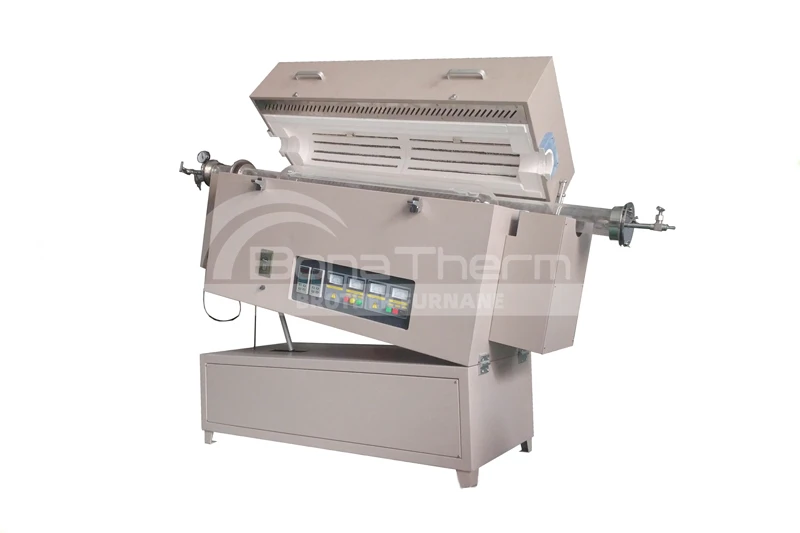

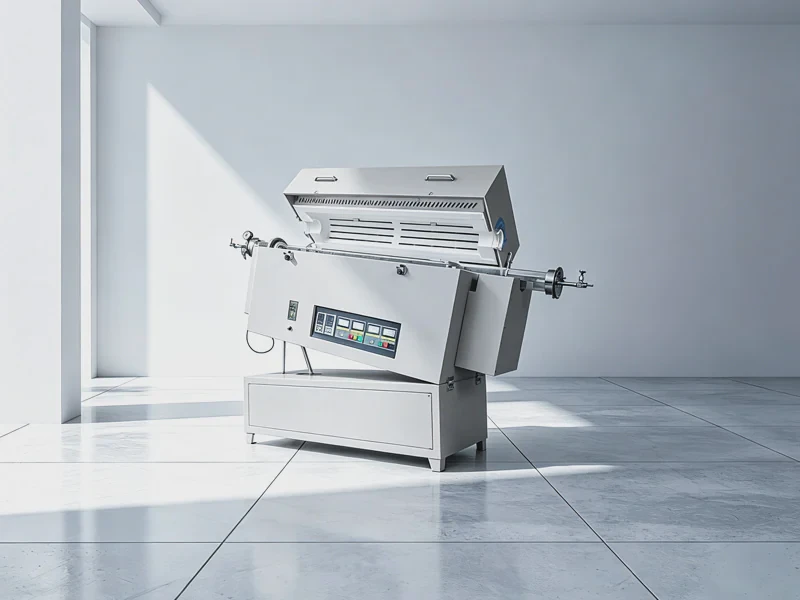

Rotary tube furnace
The rotary tube furnace is an advanced equipment specially designed for the sintering of inorganic compounds. It is especially suitable for preparing negative electrode materials with conductive coatings for lithium-ion batteries. It can also meet the needs of applications such as uniform drying and calcination of materials. The furnace body can achieve 30 degree tilt.
View Details

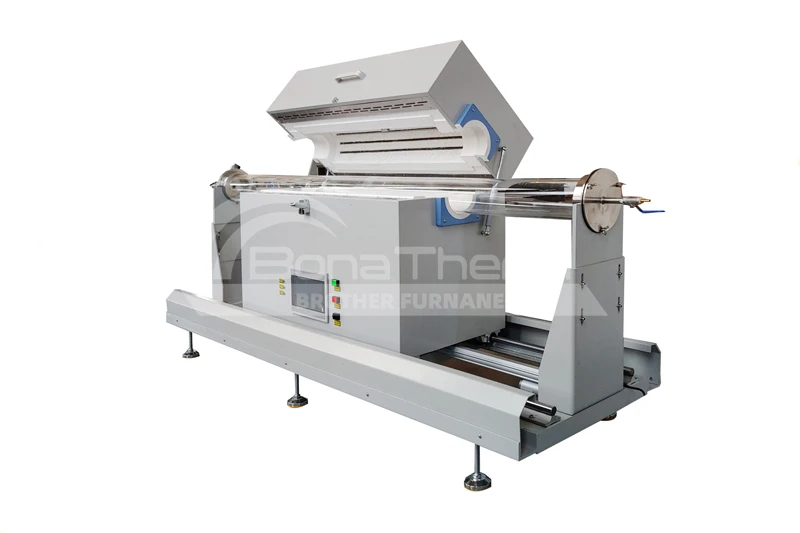

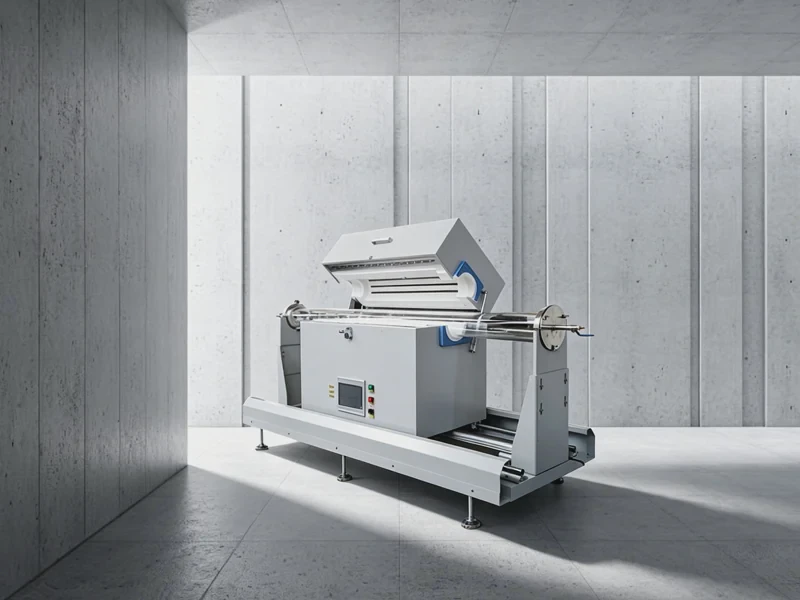

Slide-rapid cooling tube furnace
The sliding tube furnace uses high-quality high-purity quartz tubes as the furnace tube, ensuring excellent high temperature resistance and chemical stability. It can withstand high temperatures up to 1200°C. It is widely used in laboratories of universities, scientific research institutes, and industrial and mining enterprises.
View Details

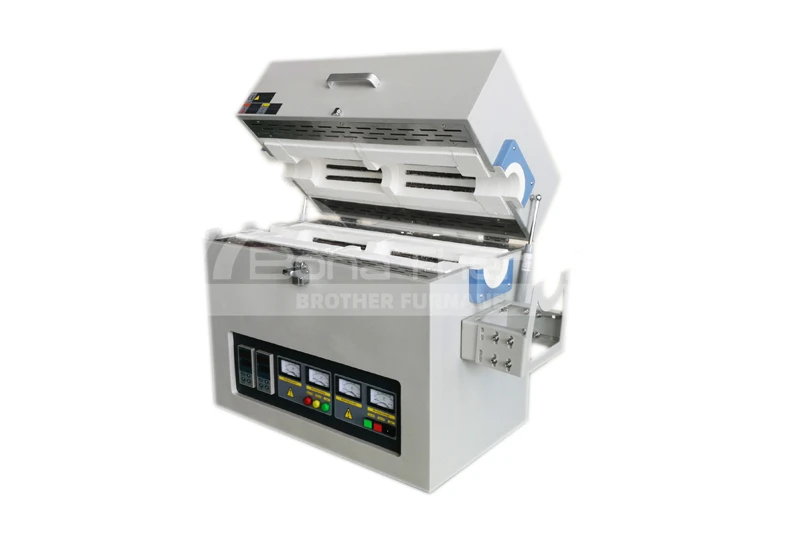

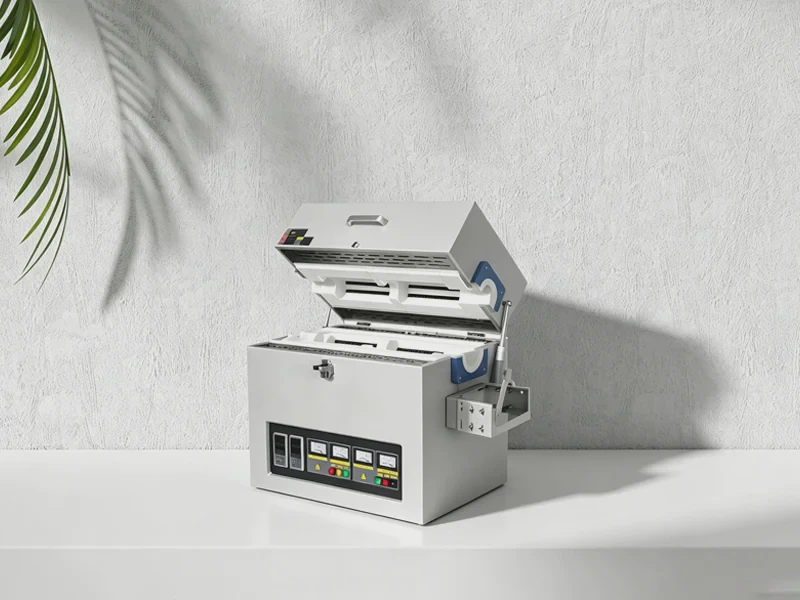

Multi-Zone Tube Furnace
The multi-zone tube furnace, available in configurations of double, three, and five heating zones, features independent control for each zone. Primarily utilized in vacuum or protective atmospheres, this furnace accommodates a wide range of temperatures for various processes such as material pre-burning, sintering, coating, high-temperature pyrolysis, and low-temperature deposition (CVD). It is ideal for the preparation of carbon nanotubes and silicon nanowires.
View Details
Common Applications
Our tube furnaces are used across a wide range of research and industrial applications.

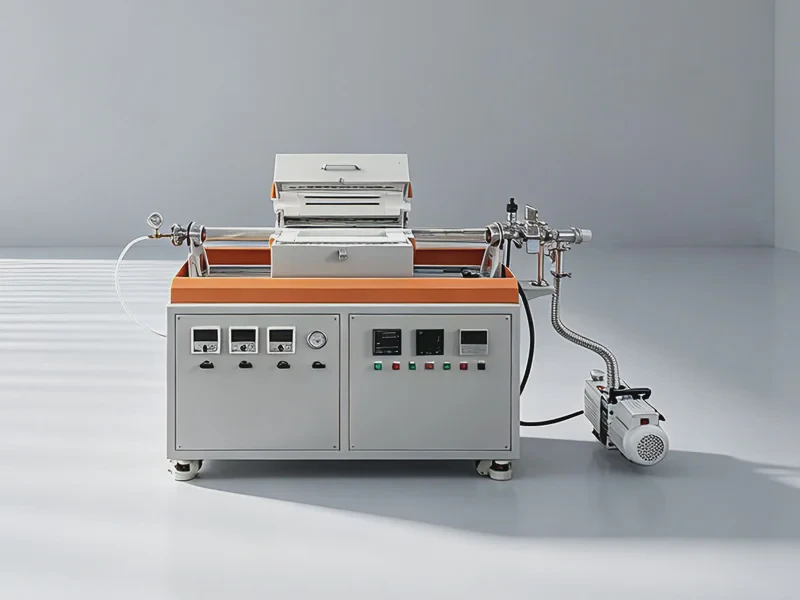

CVD & PVD
Chemical and physical vapor deposition for thin film growth and nanomaterial synthesis.
Annealing
Post-processing heat treatment to relieve stress and improve material properties.
Crystal Growth
Vertical tube furnaces for growing single crystals and semiconductor materials.
Catalyst Preparation
Rotary tube furnaces for catalyst activation and calcination processes.
Materials Synthesis
Solid-state reaction and powder sintering for advanced ceramic and composite materials.
Calcination
High-temperature thermal decomposition of substances for oxide powder preparation.
